Digital Camber Caster Gauge, LCD Display, Magnetic Base, Home Garage Wheel Alignment Tool, -90° to +90° Range

About this item

• WHEEL ALIGNMENT AT HOME, DIGITAL READOUT: Check your own camber and caster angles in your home garage. The LCD display gives you a direct number with no bubble to read by eye. Full -90° to +90° range covers all standard passenger car, truck, and SUV angles.

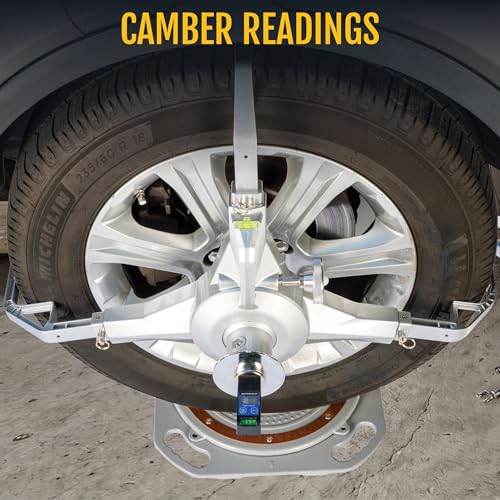

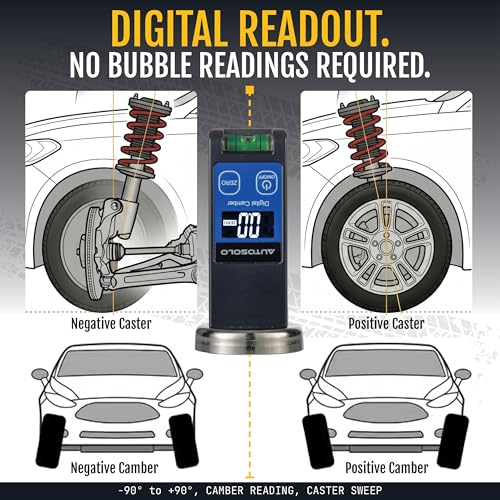

• CAMBER ON THE LCD, CASTER FROM THE SWING: Reads camber directly on the backlit LCD display. Caster comes from the 20° steering sweep: the LCD shows the swing, then multiply by 1.46 for true caster. Built-in bubble level confirms horizontal positioning before you take a reading. Battery level indicator shows remaining charge.

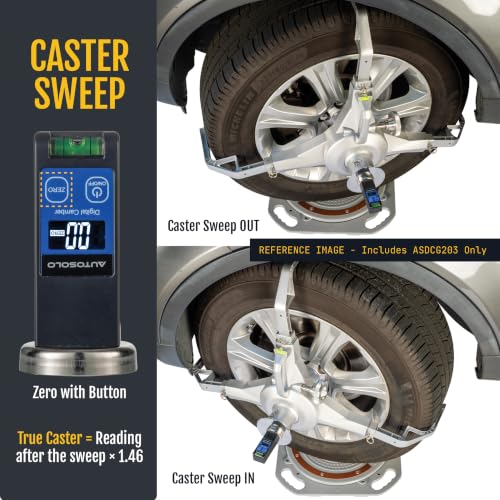

• ONE BUTTON CASTER CALIBRATION: Press ZERO to set your reference at your starting steering position. Turn the wheel 20° inward, then 20° outward. The LCD shows the sweep swing. Multiply that reading by 1.46 to get true caster. Arrow indicators show which direction to adjust. Straightforward workflow for both first-time and experienced users.
• READINGS STORED AFTER POWER OFF: The gauge holds the last camber and caster values after you turn it off. Make your suspension adjustment, power it back on, and compare against your starting point without writing anything down mid-job.
• ALUMINUM BODY, BACKLIT LCD: High-density aluminum housing handles shop impacts. The backlit LCD screen stays readable in a dim or unlit garage. No squinting at a bubble in low light.

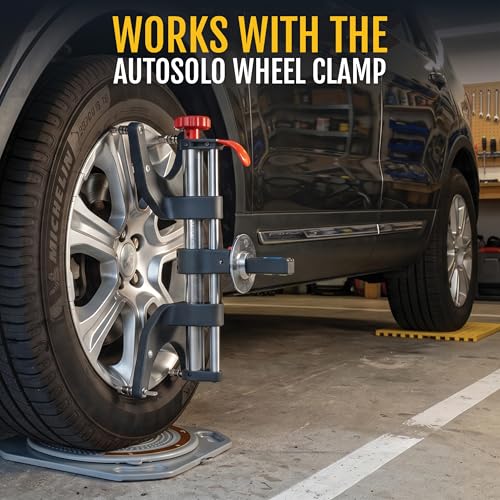

• MAGNETIC BASE, WORKS WITH THE AUTOSOLO SYSTEM: Magnetic base locks onto cast iron hubs, brake rotors, and the AutoSolo ASWG001 wheel clamp. Part of the AutoSolo manual alignment system alongside turn plates and toe boards for a complete home setup.
• DIGITAL CAMBER OR THREE ANALOG ANGLES: This gauge reads camber and caster as numbers on a screen. If you want camber, caster, and kingpin inclination from one mount with analog vials, the AutoSolo ASCCKG Camber Caster Kingpin Gauge covers all three angles. Both tools work in the same AutoSolo system.
• WORKS ON CLASSIC AND MODERN VEHICLES: Attaches directly to cast iron hubs and rotors on any vehicle regardless of make, age, or wheel size. Works on older and vintage vehicles where shop alignment machines cannot lock.
• SKIP THE SHOP VISIT: Check your own camber and caster angles after suspension work, new tires, or any time you notice handling changes. Do it yourself in your own garage instead of scheduling a shop appointment.

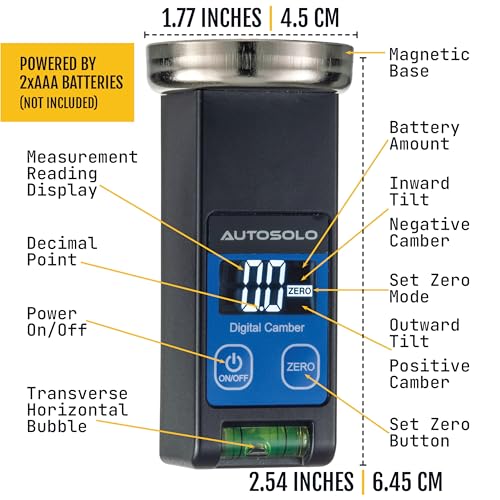

• WHAT IS INCLUDED: 1x AutoSolo digital camber caster gauge with LCD display, magnetic base, and ZERO calibration button. Works with the full AutoSolo alignment system including ASWG001 wheel clamps, turn plates, and toe boards.

Overview

• Brand: AUTOSOLO
• Material: Aluminum
• Item dimensions L x W x H: 1.77 x 1.77 x 2.54 inches
• Number of Items: 1
• Unit Count: 1 Count
