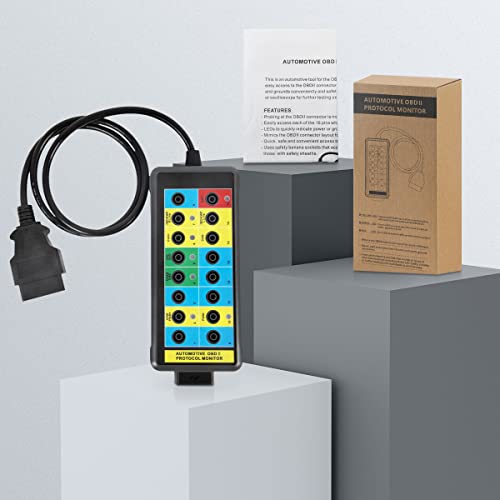

CMTOOL OBD2 Breakout Box with LED Light Indicator, Professional 16-Pin OBD Breakout Box, Automotive Electrical Diagnostic Test Tool, Portable Testing Tool

CMTOOL OBD2 Breakout Box with LED Light Indicator, Professional 16-Pin OBD Breakout Box, Automotive Electrical Diagnostic Test Tool, Portable Testing Tool

$43.14 USD
$43.14 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

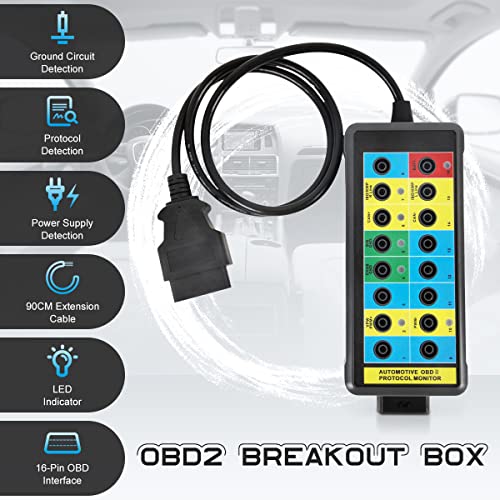

  • 【Detect Communication Protocol, Power Supply and Grounding Circuit】This is a professional automotive tool for the OBDII diagnostic link connector which offers easy access to the OBDIl connector for monitoring signals of protocol, power and grounds conveniently and safely. When unconfirmed signals are detected, the breakout box can also be connected to a multimeter or oscilloscope for further testing.

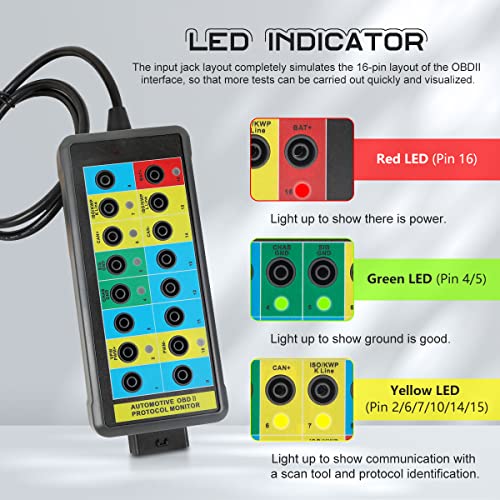

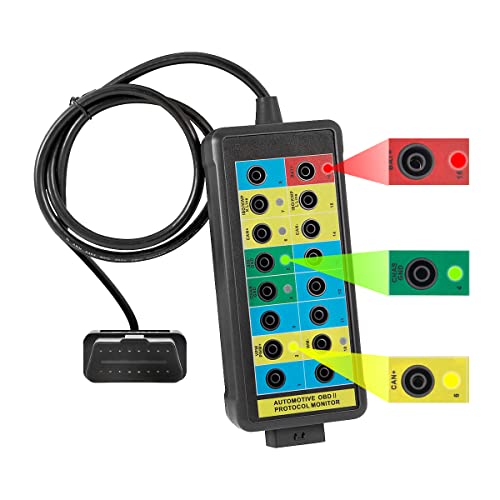

  • 【LED Indicators】The LED lights on the OBD2 breakout box can quickly indicate whether the power and grounding of the OBDII interface on the car are normal. Yellow LED (Pin 2/6/7/10/14/15) lights up to show communication with a scan tool and protocol identification; Green LED (Pin 4/5) lights up to indicate good ground. The Red LED (Pin 16) lights up to show there is power.

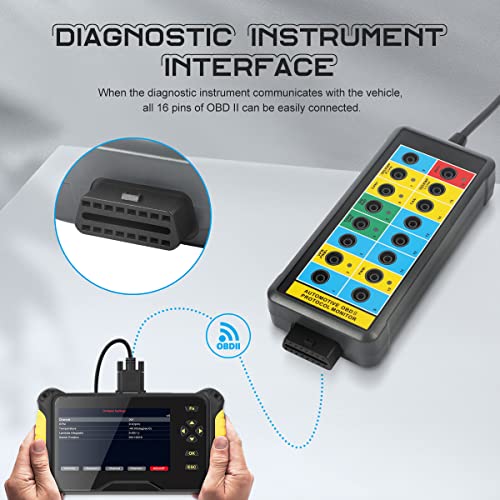

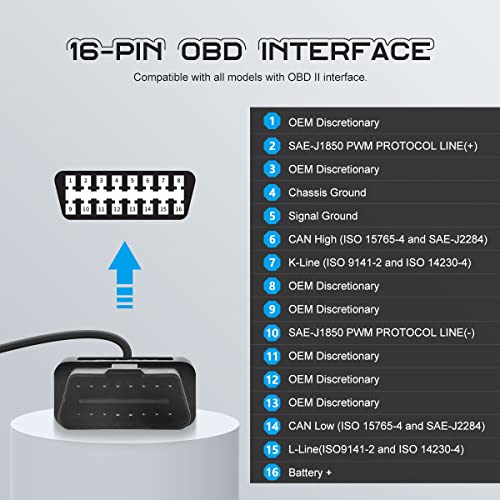

  • 【16 Pin OBD Interface】The input jack layout simulates the 16-pin layout of the OBDII interface, making more tests quick and intuitive. All 16 pins of OBDII can be easily connected when the decoder communicates with the vehicle. This OBD2 breakout box provides easy access to the vehicle data bus lines.

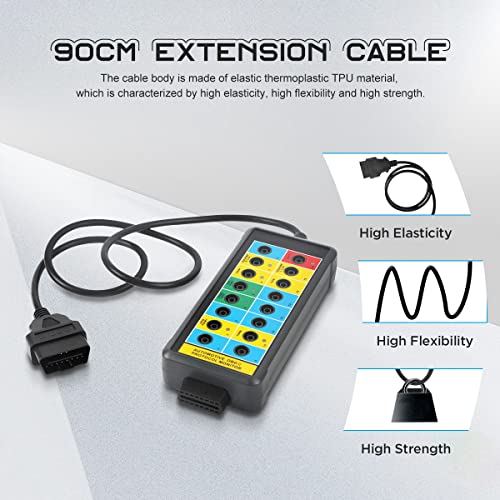

  • 【90CM Extension Cord】The OBDII connector extension cable adopts multithreading data connection technology, which makes the connection faster and smoother. The cable body is made of elastic thermoplastic TPU material, which has the characteristics of the high elasticity, high strength and high resilience.

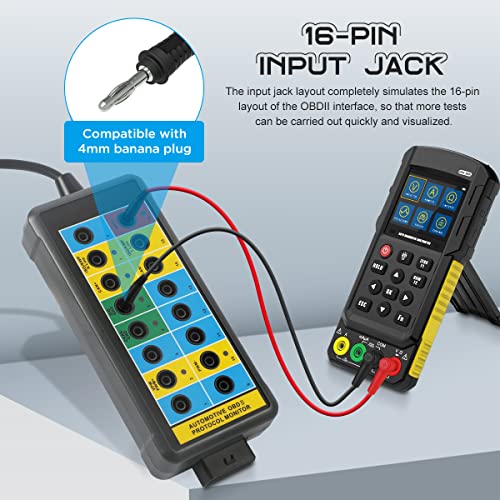

  • 【Standard 4MM Rubber Socket】The OBD2 breakout box uses safe banana sockets, and the built-in input jack can be connected to any type of 4mm banana plug, including those with safety sheaths, making it easier to connect the breakout box to a multimeter or oscilloscope.

Overview

  • Brand: CMTOOL
  • Power Source: Corded Electric
  • Product Dimensions: 7.09"L x 3.15"W x 1.38"H
  • Operating System: Windows XP
  • Screen Size: 18 centimeters
