522 7393 8056 Puller and Protector Tools 522 Large Gear and Pulley Puller & 7393 Gear and Pulley Puller & 8056 Shaft Protector Set for Timing Gears, Fan Pulleys

522 7393 8056 Puller and Protector Tools 522 Large Gear and Pulley Puller & 7393 Gear and Pulley Puller & 8056 Shaft Protector Set for Timing Gears, Fan Pulleys

$139.42 USD
$139.42 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

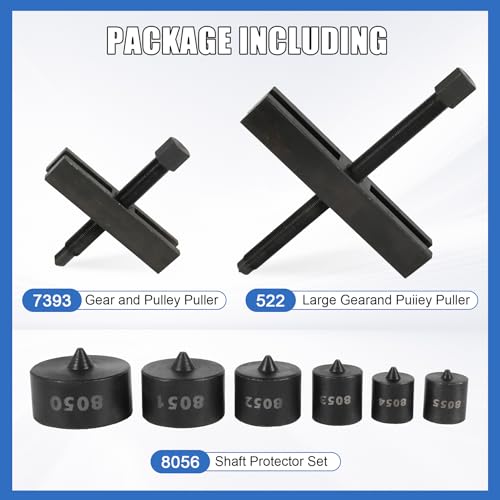

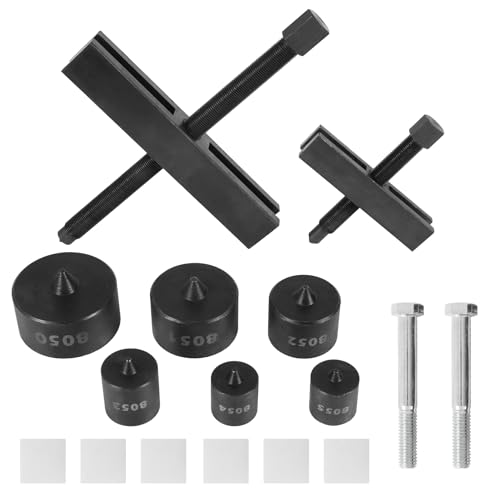

  • Universal Must-have tools kit-Replace for OTC p/n 522 7393 8056 puller and protector tools.Made from premium grade steel with black oxide finished at surface, the tools are hardened and extremely durable and strong, corrosion and rust resistance.
  • ✦ 522 large gear and pulley puller can easily remove a wide range of gears, pulleys or other parts that have tapped holes.
  • ✦ 7393 gear and pulley puller help you easily remove timing gears, fan pulleys, harmonic balancers, and many other parts having tapped holes.

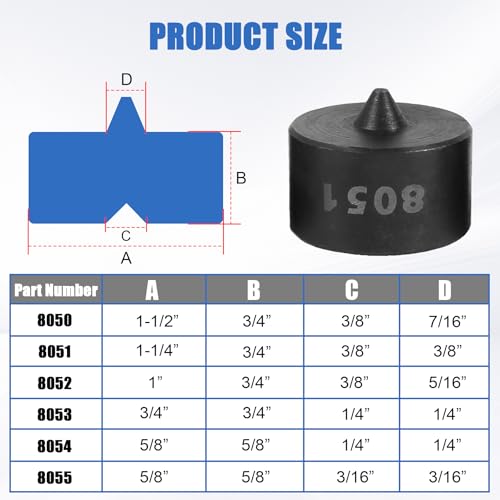

  • ✦ 8056 shaft protector set ( PACKAGE INCLUDES -- Set of 6 shaft protectors (Nos. 8050, 8051, 8052, 8053, 8054, 8055). Checked below for dimension.) It is used with grip-o-matic puller or push-puller, fan blade, gear and bearing Pullers. Inserted between the end of the puller screw and the shaft. Designed to protect shaft centers from distortion when extreme pressures are applied with either Grip-O-Matic pullers or Push Pullers.

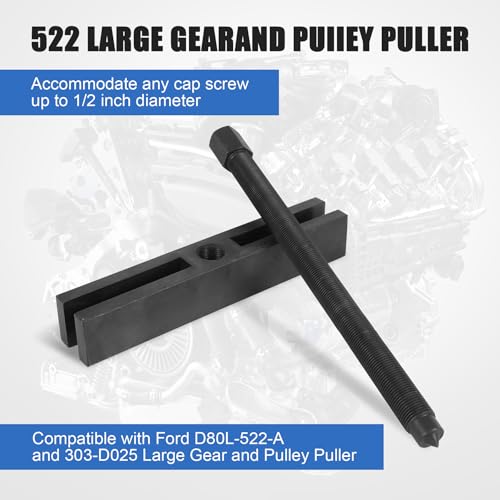

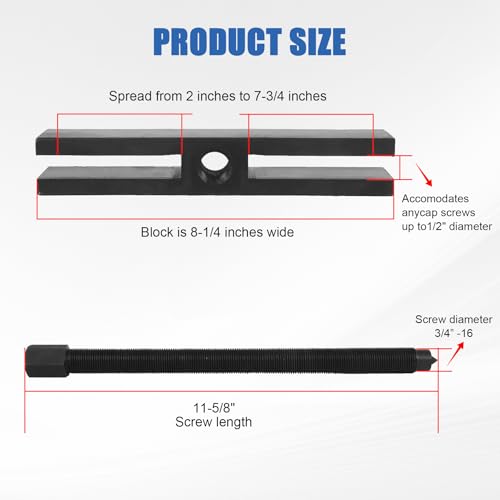

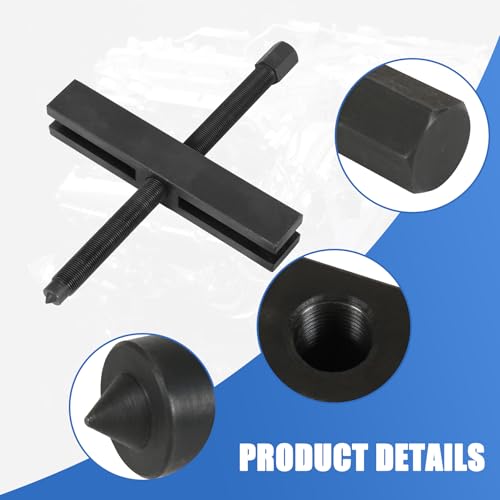

  • 【522 Large Gear and Pulley Puller】Compatible with Ford D80L-522-A and 303-D025, Spread from 2 inches to 7-3/4 inches; block is 8-1/4 inches wide. Forcing screw is 3/4 inch-16 x 11-5/8 inches long. This tool could accommodate any cap screw up to 1/2 inch diameter and fit for many types of gears and pulleys.

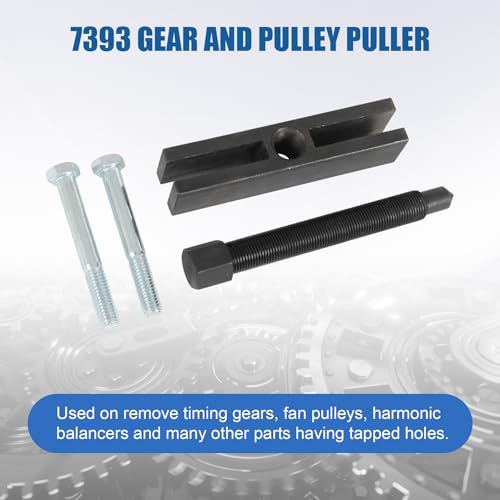

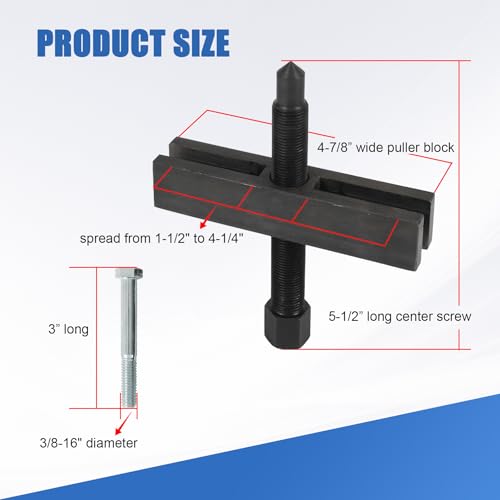

  • 【7393 Gear and Pulley Puller】Puller features a spread of 1-1/2 inches to 4-1/4 inches. Puller block is 4-7/8 inches wide. 5-1/2 inch long center screw; includes 2 ea. 3/8-16 x 3 inch long hex head cap screws.

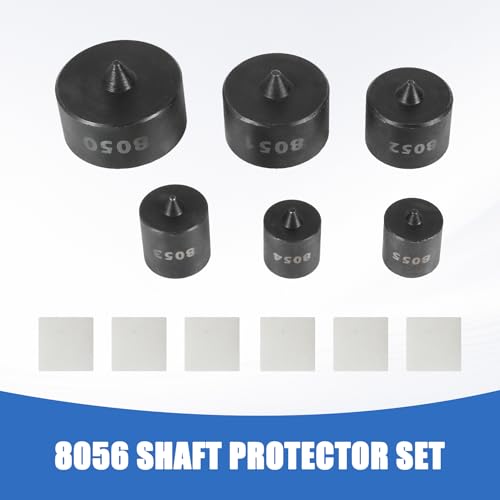

  • 【8056 Shaft Protector Set】Inserted between the end of the puller screw and the shaft. Designed to protect shaft centers from distortion when extreme pressures are applied with either For Grip-O-Matic pullers or Push Pullers. The male and female locators will help keep the shaft protector in place during use.

Low stock: 10 left

View full details
