The Pressure Test: A Step-by-Step Guide to Diagnosing Engine Compression Loss in Your Home Workshop

How to Perform an Engine Compression Test: A Step-by-Step Diagnostic Guide

The internal combustion engine relies on a perfect mechanical seal to transform raw chemical fuel into kinetic horsepower. During the compression stroke, the piston sweeps upward, compressing the fuel-air mixture within a tightly sealed chamber bounded by the cylinder walls, intake and exhaust valves, and the cylinder head gasket. Over miles of high-performance driving or heavy-load hauling, these sealing components are subjected to relentless thermal cycling and physical friction. When those seals degrade, compressed gases escape prematurely, leading to immediate performance issues like a rough idle, sudden misfires, and a steep drop in fuel economy. To pinpoint the exact location of a physical power loss without tearing down your entire engine block, you must execute a systematic, step-by-step cylinder compression test.

Follow this uncompromising workshop procedure to measure your engine thermal seal and diagnose hidden internal wear.

Step 1: Achieving Uniform Engine Operating Temperature
Never execute a compression test on a cold engine block. Metal components like aluminum pistons and steel compression rings expand significantly when exposed to thermal energy, settling into their true operating tolerances only when warm. Prioritize a ten-minute drive or idle the vehicle in your workspace until the coolant temperature needle centers perfectly on your instrument cluster. Shut off the ignition, engage the emergency brake firmly, and place wheel chocks behind the rear tires. Working on a warm engine ensures your physical pressure readings accurately reflect real-world highway driving conditions.

Step 2: Isolating the Fuel and Ignition Systems
Before mounting any diagnostic tools, you must completely disable the engine ability to fire or deliver raw fuel. Cranking an engine with active fuel injectors will wash the cylinder walls with raw gasoline, stripping away the thin oil film required to seal the compression rings and distorting your measurements. Locate your vehicle primary under-hood fuse block and pull the fuel pump relay alongside the main electronic ignition fuse. Disconnect the primary electrical harness leads from every individual ignition coil pack, label each spark plug wire systematically to prevent timing mix-ups during reassembly, and set the components safely aside on a clean magnetic tool tray.

Step 3: Extracting the Spark Plugs and Clearing Cylinder Paths
Blow compressed air into the spark plug recesses to blast away loose grit, trail dust, or metal shavings that could drop straight onto the piston crowns when the cylinders are opened. Use a dedicated magnetic spark plug socket fitted to a long extension bar to loosen and extract every spark plug from the cylinder head. Inspect the firing tips of the plugs as they emerge; a wet, oil-fouled tip or a bone-white blistered ceramic insulator serves as an early secondary indicator of deep combustion chamber stress. Keep the plugs organized in sequential order based on their corresponding cylinder numbers.

Step 4: Executing the Primary Dry Pressure Test

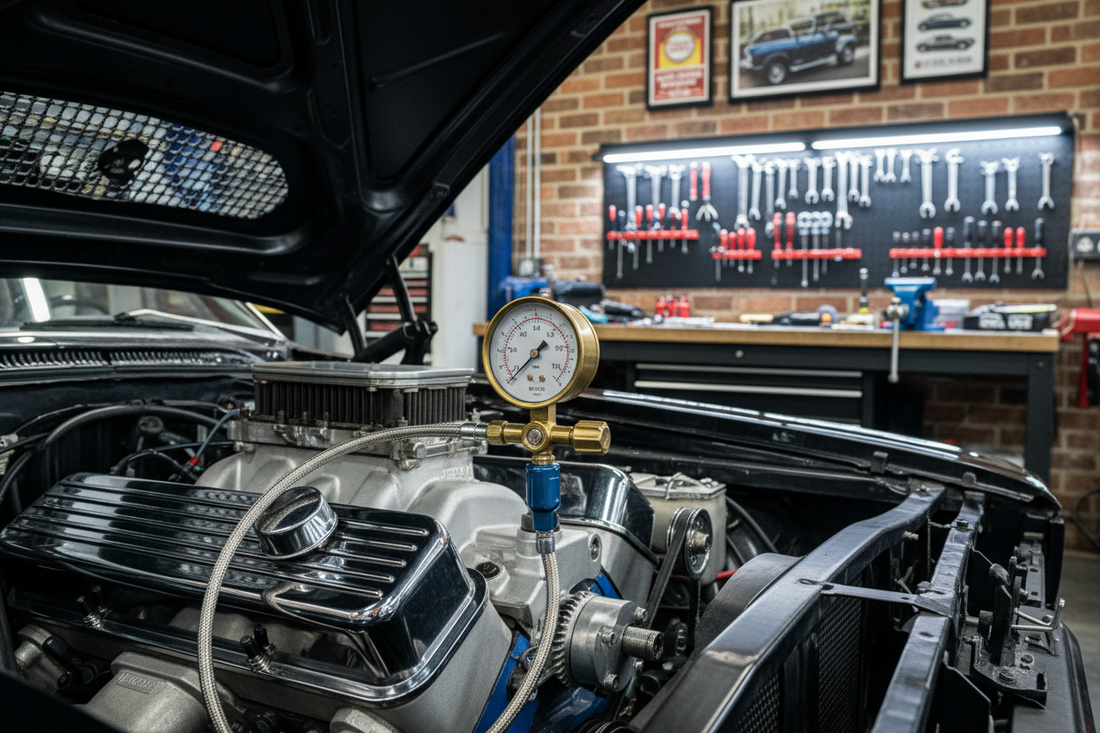

Thread the brass adapter hose of a professional automotive compression gauge into the spark plug port of cylinder number one, tightening it finger-tight to secure a perfect rubber seal. Sit inside the vehicle cabin, depress the throttle pedal completely down to the floor boards to hold the throttle body plate wide open, and crank the engine over for exactly five compression strokes. You will hear the starter motor rhythmic pulsing through the gauge lines. Look at the dial needle, record the peak pounds-per-square-inch measurement, hit the pressure release valve, and repeat the sequence for every remaining cylinder across the engine block.

Step 5: Analyzing the Differential Variance and Wet Testing
A healthy engine requires structural equilibrium across all combustion chambers. For top-tier mechanical operation, the difference between your highest and lowest cylinder readings must remain within a strict ten percent margin. If a single cylinder drops below one hundred pounds per square inch or exhibits a wide variance, pour one tablespoon of clean motor oil straight into that low port and re-test. If the pressure readings jump upward significantly during this wet test, the fresh oil has temporarily sealed worn piston rings, pointing to low-end block wear. If the pressure stays stagnant and low, the gases are escaping through a burnt valve seat or a blown cylinder head gasket, giving you the exact blueprint needed for your upcoming repair work.
