The Gravity Test: A Step-by-Step Guide to Safely Lifting and Supporting Your Vehicle on Jack Stands

How to Safely Lift and Support a Vehicle on Jack Stands: A Step-by-Step Guide

Working underneath a two-ton piece of machinery is the ultimate test of preparation and discipline in any home garage. While modern DIY auto repair is deeply rewarding, a single shortcut during the lifting process can turn a routine brake job into a catastrophic emergency. Hydraulic floor jacks are engineered strictly for raising a car, never for holding it in place while you crawl underneath. True garage safety relies entirely on the mechanical stability of properly rated, correctly positioned jack stands.

To guarantee absolute stability and protect both your vehicle and your life, follow this uncompromising step-by-step lifting protocol.

Step 1: Preparing the Workspace and Chocking Wheels
Safety begins long before the wheels leave the ground. Your garage floor must be flat, solid concrete. Never attempt to lift a vehicle on asphalt, gravel, or uneven dirt, as the tiny footprint of a jack stand can easily sink or tilt under heavy weight. Engage the vehicle parking brake firmly. If you are lifting the front of the car, place heavy rubber wheel chocks tightly behind and in front of both rear tires. This physical block prevents the vehicle from rolling backward or forward when the opposite end is lifted into the air.

Step 2: Identifying Factory Lift Points
Consult your vehicle owner manual to locate the exact factory-designated jack points. Placing a floor jack or jack stand under unreinforced floorboards, body panels, or fluid lines will crush the metal and cause severe structural damage. Look for the notched metal pinch welds along the lower side sills, or heavy steel frame rails underneath the chassis. If your vehicle features a unibody construction, you must use a jack pad adapter on your floor jack saddle to avoid bending the vertical metal seam during the initial lift.

Step 3: Executing the Primary Lift
Position your hydraulic floor jack under the primary front or rear central lift point, such as a sturdy engine crossmember or a solid rear differential housing. Pump the jack handle slowly, watching the saddle make contact with the metal frame. Ensure it is centered perfectly. Continue raising the vehicle until the tires clear the floor with enough height to slide your jack stands underneath. Maintain a safe distance and listen carefully for any popping sounds or sudden balance shifts.

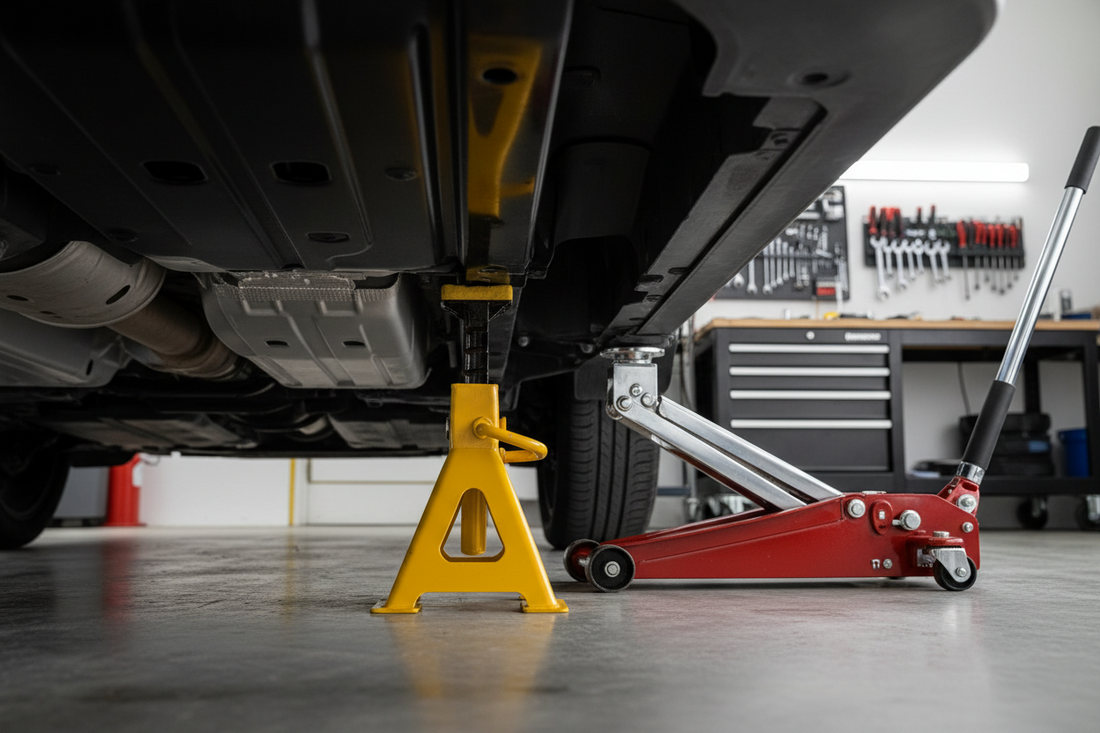

Step 4: Positioning and Seating the Jack Stands
Slide your jack stands underneath the secondary factory frame points or pinch welds. Adjust the ratcheting columns so they match in height, ensuring both pins are fully engaged and locked into the teeth. Slowly twist the floor jack release valve counterclockwise to lower the vehicle onto the stands. The car must settle completely onto the center of the jack stand saddles. Do not remove the floor jack entirely. Instead, leave it raised just a fraction of an inch below the lifting point to act as a secondary emergency failsafe.

Step 5: The Shakedown Test
Before you even think about grabbing a wrench or sliding your torso under the chassis, you must perform the definitive shakedown test. Approach the front bumper and shake the vehicle vigorously from side to side and up and down. If the car sways, creaks, or slips even a millimeter on the saddles, your setup is unstable. If it fails this test, immediately raise the car with the floor jack, realign your stands, and repeat the process. Only when the vehicle feels like an immovable stone foundation is it safe to begin your repair work.
